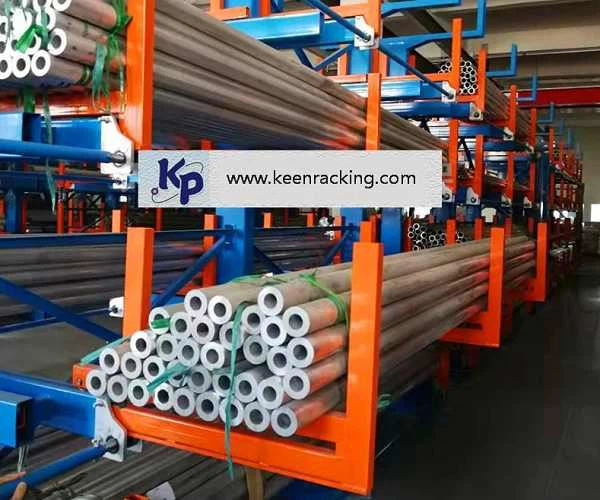

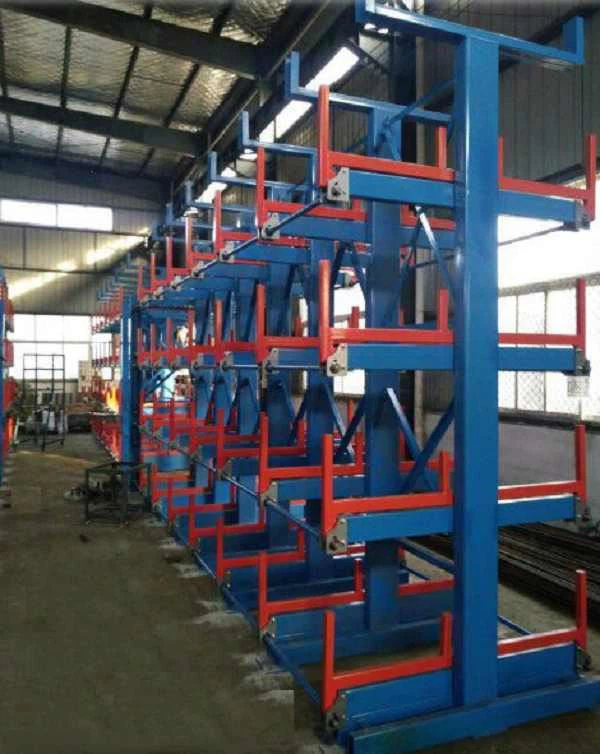

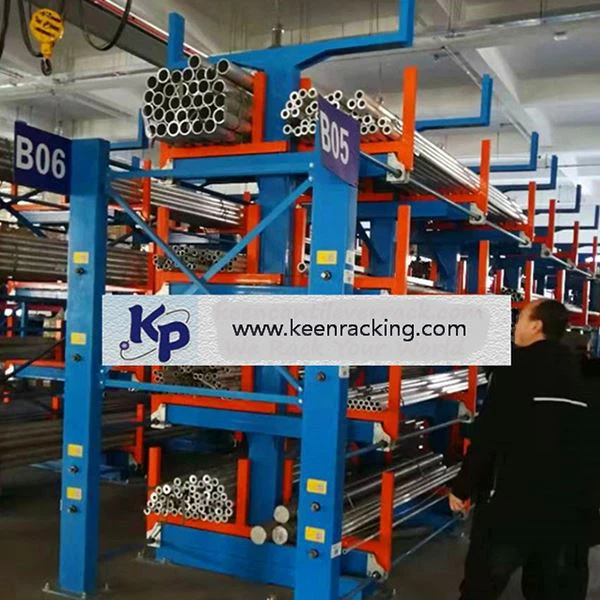

Telescopic Cantilever Rack for Storage

Telescopic Cantilever Rack for storage is also called Retractable Cantilever Rack, The Telescopic or Retractable cantilever rack is mainly suitable for rod-shaped and tubular materials. The traditional rod-shaped and tubular sections are usually stacked directly on the ground of the warehouse, and there are many types of pipes, which not only occupy space but also are inconvenient to use. In view of this phenomenon, a Cantilever Racking Frame System is designed to realize classified storage, but there are still problems. Without the limit device, the tubular structure is easy to roll and slide. When the sections are stored, only forklift or forklift can be used It is necessary to reserve forklift passage for manual handling and selection of forklift, which results in waste of space. It is not only a waste of human resources but also a potential safety hazard. At the same time, it is also a waste of space to reserve manual operation space, As a manufacturer of cantilever rack design, we often deal with warehouse managers. We know that they are troubled by storage and access problems of goods. For a long time, our factory has been committed to developing a new rack structure to solve the problems of warehouse storage. In 2012, we developed more advanced telescopic cantilever shelves at home and abroad. Since the Cantilever Rack was put on the market, it has been well received by consumers.

1. Different structure:

The traditional cantilever rack is composed of the most basic crossbeam and column, while the mainframe of the telescopic cantilever rack is welded to form an assembly unit, the moving part is supported by bearings, and gear rack and crank are used. The access of goods is mechanized, and the operation is simple, easy, safe, and fast.

2.Cantilever expansion is different:

Traditional cantilever rack, its cantilever can only adjust the spacing of each layer up and down, and the left and right structures can not be moved and adjusted.

The cantilever of the retractable hanging wall rack can be adjusted by 100% retraction, which can not only be adjusted up and down but also extend out of the main rack left and right.

3. Different order of goods access:

The traditional cantilever rack can only take the upper layer first and then the lower layer, while the inventory can only put the lower layer first and then the upper layer, which is very inconvenient. However, the retractable hanging rack can be accessed at will, which is not limited by the sequence and height layers.

4. Different types of goods stored:

The traditional cantilever rack can only store some ordinary goods, while the retractable cantilever rack can store many kinds of goods, such as pipes, profiles, bars, square tubes, long goods, large goods, irregularly shaped goods, etc. The telescopic cantilever rack can store goods up to tens of meters long. Of course, it can also easily access goods as short as tens of centimeters.

5. Different supporting equipment

The telescopic retractable cantilever rack is a bridge crane, which is used together to realize mechanized access. The traditional cantilever rack is mainly used in combination with forklifts because of its structural limitations. Customers need to buy a professional forklift, while the retractable cantilever rack is used in combination with bridge crane in the general workshop, so it is unnecessary to buy other equipment and save costs.

6. Different occupied space:

Traditional cantilever rack combined with forklift use, it is necessary to leave a wide forklift passage, the overall floor area is large, the storage capacity is correspondingly reduced. The telescopic and retractable cantilever rack is used with the bridge crane, which does not need a too large a channel. The racks are closely arranged, which is suitable for the small and narrow warehouse. Moreover, the length of the cantilever arm of the rack can be adjusted, which saves more space. The overall storage capacity is 2-3 times of the traditional rack.

Information required for cantilever rack design:

1) Storage weight

2) Size of goods storage (length x width x height)

3) Size of warehouse

Our services：

You just need to tell us the 3D size of your warehouse, we can design and draw drawings for you in 48 hours.
