Drive-in Racking

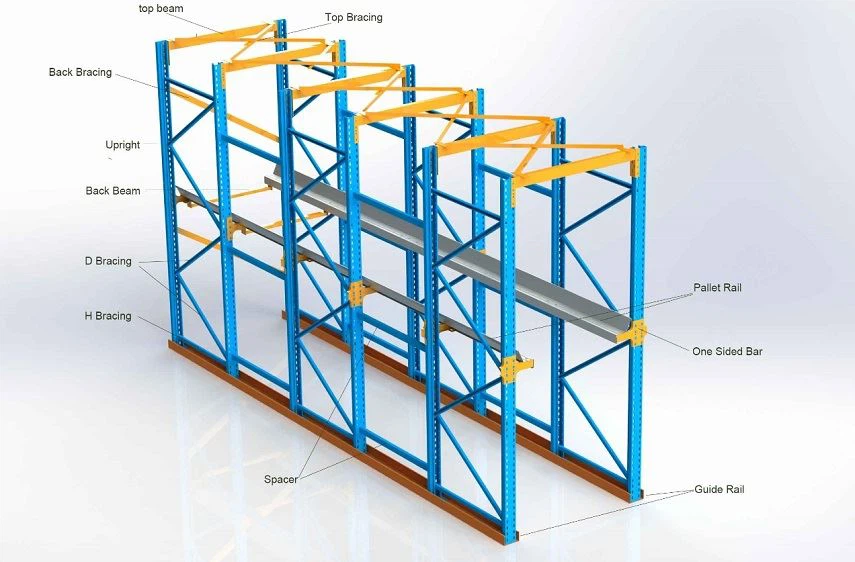

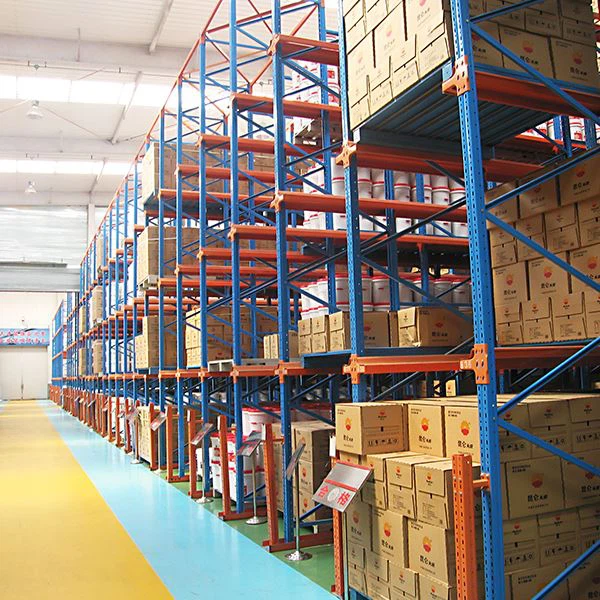

Through rack is also called corridor rack or Drive-in racking. The through rack can be used for forklifts (or unmanned trucks with a fork) to drive into the channel to access goods. It is suitable for the storage of goods with small varieties and large quantities. In addition to the storage space close to the passage, the depth of 7 storage spaces is not recommended for single side picking up, because forklifts need to enter into the storage space to store and store goods. In order to improve the operation speed of forklift trucks, guide rails can be selected according to the actual needs. Compared with storage space shelves, the utilization rate of storage space of through shelves (drive-in shelves) can be increased by more than 30%. Through shelves (drive-in shelves) are widely used in wholesale, cold storage, food, and tobacco industries. The design principle of through rack, also known as a drive-in rack, is to connect several rows of traditional racks, with special lanes, and the same lanes are used for forklift access. When it is stored, it shall be stored from the inside first, and then in order to the outside. When it is shipped, it shall be taken out from the outside first, and then in order to the inside. The storage density is very good, but it cannot be first in, first out. It is suitable for material warehouses or transfer warehouses with a high frequency of periodical batch operation and material storage.

Product Details:

Drive-in racking has low investment cost, dense shelf layout, and high space utilization rate. Its utilization rate is almost twice that of the pallet rack. However, the stability of the Drive-in racking system is weak and the shelf should not be too high. The long-equipped forklift trucks are forward-moving forklifts and counterweight forklifts.

Please let us know your specific requirements so that we can make a quick quotation

* Width, depth of shelving;

* Height of shelving system;

* How many layers you want;

* Loading capacity of each layer ;

* Size of your warehouse;

* All color you want;
