Push Back Pallet Racking

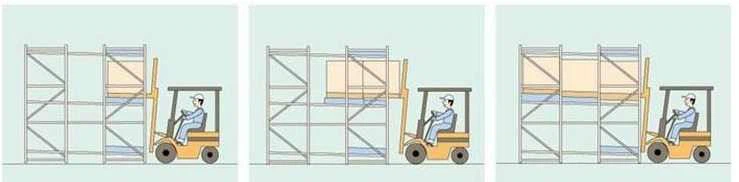

Push Back Pallet Racking, also known as a push-in rack, is overlapped and connected by multi-layer trolleys between the front and rear beams. The stacked goods are pushed into the trolleys from the outside, and the goods stored later will push the original goods inside. The main accessories are composed of column plate, beam, track, carrier trolley, etc. The push back rack adopts the principle of combining the track and the pallet car. The track has a certain gradient (about 3 °), and the pallet goods are regulated to be stored at a single end by using the self-weight of the goods. The goods are first in and then out, which is suitable for the storage of large quantities and small varieties of goods. The space utilization rate is high, and the access is flexible and convenient. widely used in cold storage, books, electronics, and other industries.

Advantage:

1) When the number of pallets of a product is large and "first-in, first-out" is not required, the working procedure can be simplified, and the benefit is extremely significant.

2) It can shorten picking time without special handling equipment.

3) Due to the large storage area and fewer channels, the space utilization and productivity are very high.

4) It can avoid the damage of high-density storage racks in loading and unloading operations.

If you want Push-back Racking we need this information：

1. The Auto CAD drawing.
2. The size of your warehouse
3. The height, width, depth of frame.
4. How many bays you want?
5. How many layers you want?
6. The loading capacity of each pair beam.
7. How many pallets per layer?
8. The size of each pallet.
9. The RAL color you want.
