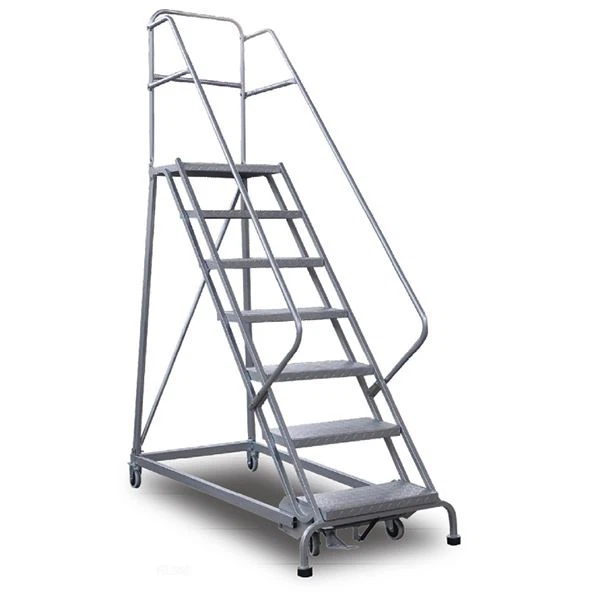

Mobile Pick Up Ladder
The Ladder is equipped with a special pedal locking mechanism. The first layer of pedal brake mechanism is automatically opened by pressing it.
Description
Product Description:

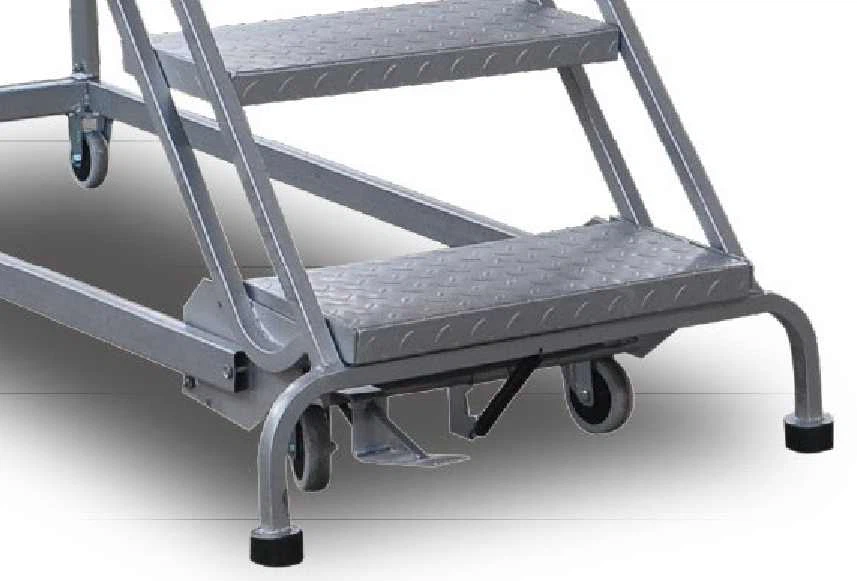

1. The Ladder is equipped with a special pedal locking mechanism. The first layer of the pedal brake mechanism is automatically opened by pressing it. When moving, you only need to lightly press the reset pedal under the first layer of the pedal to move easily.
2. The use of a high-quality anti-skid pattern plate is safer and stronger. It can be disassembled and connected for convenient transportation.
3. High-quality mute caster, convenient and flexible to move.
4. The height is optional from 1000-3500mm.
5. Suitable for the library, supermarket, warehouse, goods storage, loading, and unloading.
6.304 stainless steel material is optional. If there are special requirements, it can be customized as required.
model | Rated load (kg) | Number of pedal layers | Top-level height h(mm) | Wheel specifications (mm) | Maximum dimension (L×W×H(mm)) | Net weight (kg) |
KP354 | 300 | 4 | 1020 | PU Ф100×30 | 1220×900×1830 | 57 |
KP355 | 300 | 5 | 1275 | PU Ф100×30 | 1450×900×2090 | 67 |
KP356 | 300 | 6 | 1530 | PU Ф100×30 | 1670×900×2340 | 77 |
KP357 | 300 | 7 | 1785 | PU Ф100×30 | 1890×900×2600 | 87 |
KP358 | 300 | 8 | 2040 | PU Ф100×30 | 2100×900×2850 | 97 |
KP359 | 300 | 9 | 2295 | PU Ф100×30 | 2320×900×3100 | 110 |
KP3510 | 300 | 10 | 2550 | PU Ф100×30 | 2545×900×3595 | 120 |
KP3511 | 300 | 11 | 2805 | PU Ф100×30 | 2770×900×3850 | 130 |
KP3512 | 300 | 12 | 3060 | PU Ф100×30 | 2995×900×3850 | 140 |
