Pallet Racks

Pallet racks (cross-beam shelf) are a kind of heavy-duty shelf, whose purpose is to store pallet goods. Because each pallet is a storage space, it is also called a storage space shelf. The application of pallet racks is very extensive, including electronics, home appliances, communications, computers, instruments, furniture, clothing, automobiles, tires, supermarkets, and other industries will be used. And now the beam shelf is also widely used in the high-level warehouse.

Pallet racks are mainly composed of column pieces and cross beams.

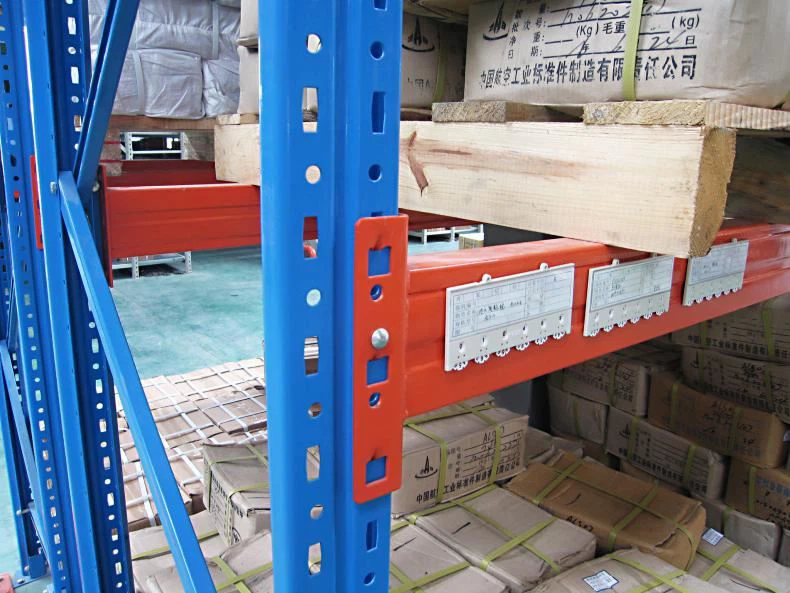

A. The column plate is composed of two columns, cross braces, diagonal braces, and self-locking bolts. This structure can effectively prevent the instability of the shelf caused by bolt loosening. There are two rows of rhombic holes punched on the column, so the crossbeam can be hung on the column and adjusted up and down freely.

B. The crossbeam is welded by two-column hangers and crossbeam rods. The crossbeam rod is made of two specially made sections, which are welded together to double the thickness of the upper and lower parts of the crossbeam. According to the steel structure design theory, this structure makes full use of the load-resistant capacity of the material, with the characteristics of lightweight, strong bearing capacity, and low cost. When the beam is connected with the column, a special design safety pin is provided to ensure that the beam will not fall off after the impact of external force.

Beam type shelf features

1. Easy to use. The crossbeam shelf can be adjusted and combined at will, and the entry and exit are not limited by the order of goods. Easy to find a location, suitable for any handling tools.

2. Safe and reliable. The beam type shelf is safe and reliable, which can determine the layer load requirements with the size of columns and beams. It has the characteristics of large inertia moment, strong layer load capacity, and strong impact resistance. The maximum layer load of each layer can reach 4000 kg/layer under the relative design.

3. High-cost performance. The beam type shelf has the advantages of simple structure, low manufacturing cost, convenient installation, and operation. At the same time, the crossbeam shelf can effectively improve the storage height and the space utilization rate of the warehouse. Suitable for all kinds of goods storage. Therefore, the crossbeam shelf is a highly cost-effective way to store goods.

Please let us know your specific requirements so that we can make a quick quotation

1) Size of your warehouse;

2) Width, depth of shelving;

3) Height of shelving system;

4) How many layers you want;

5) Loading capacity of each layer ;

6) All color you want;
