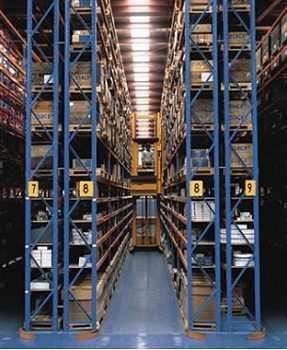

VNA Pallet Racking System

VNA (Very Narrow Aisle) Pallet Racking System is an important part of the rapid development of modern logistics systems. It has many advantages, such as saving land, reducing labor intensity, eliminating errors, improving the level of storage automation and management, reducing the loss of storage and transportation, effectively reducing the backlog of logistics funds, improving the efficiency of logistics, and so on. At present, it is more and more widely used in various industries.

Features:

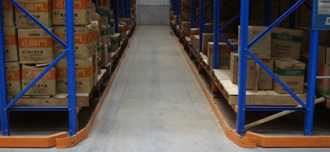

* The VNA system needs a special forklift and forklift guiding system in the narrow lane; it needs relatively flat ground; in order to ensure the accurate access and positioning of pallets in high-rise cargo space, The forklift truck must be equipped with a semi-automatic auxiliary pallet positioning device; the system is extremely strict on the structural strength and tolerance of the rack, and the precise design and installation must be considered comprehensively; unless a very low ground guide rail or a line guidance system is used, VNA rack needs to be equipped with a bottom beam, and the pallet cannot be directly placed on the ground. After the installation of narrow lane type rack, there is a guide rail with a height of about 200 mm (the guide rail can be done well in civil engineering, or the guard plate can be used to install the rack) as the guide system of the forklift, so as to reduce the risk of forklift driver to the rack due to human factors.

* Compared with the conventional pallet rack system, the VNA Pallet Rack System has a much smaller lane width, generally about 1600-2000mm, and an increase of about 20% in space utilization. In addition, guide rails must be set on both sides of the passage to guide the three-way forklift... This rack needs to be equipped with a special forklift truck - a three-way stacker, which is another feature of the rack. Due to the narrow channel, there are requirements for the skills of the forklift driver. The driving skills should be more skilled, and the work should be careful and prudent at ordinary times.

Application:

Narrow Aisle Racking System can be considered if the storage or logistics center has the following characteristics:

1. The quantity of goods stored is large, the goods in and out are frequent, and there are high requirements for goods selection;

2. The storage and logistics center needs to increase the number of storage spaces or have a certain amount of storage;

3. Logistics efficiency requires a high level.

4. The available net height of the warehouse is higher than 8m;

If you have any needs, please let us know your specific requirements so that we can make a quick quotation.

1) Size of your warehouse;

2) Width, depth of shelving;

3) Height of shelving system;

4) How many layers you want;

5) Loading capacity of each layer ;

6) All color you want;
